Text Styles


The text style naming convention is as outlined below:

Originator

Font Assigned
Item
MFL
-
Arial
Text style with Arial font

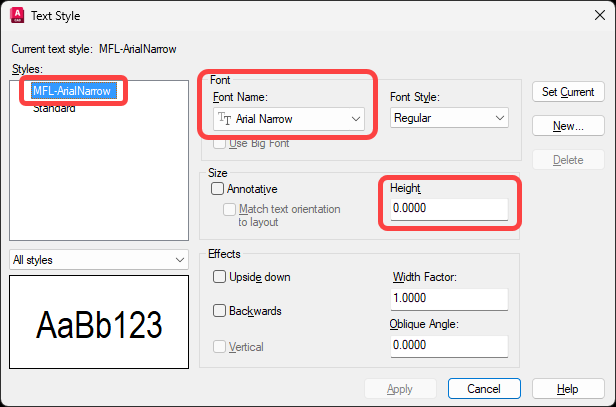

The text style references the font Arial as indicated in the Text Style dialogue below.

Please also note that the style Height is set to 0.

We recommended it is kept at 0 as a positive value overrides the text style height used in dimensions.
