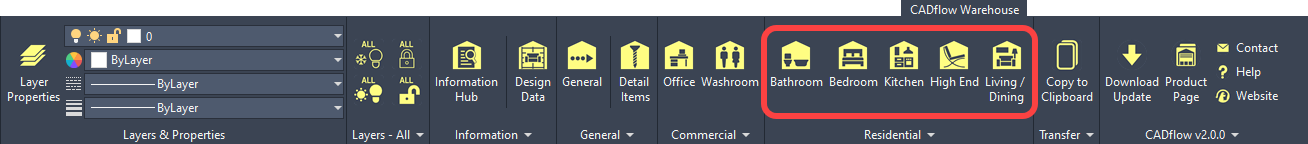

Residential Ribbon Panel

Bathroom, Bedroom, Kitchen and Living / Dining Warehouse files contain a large library of blocks ready to be copied into your drawings. Many of these items are parametric so we recommend getting familiar with how these function.

Simply copy / paste required data into your drawing.



Many of the elevation furniture and fitting blocks contain Wipeouts.

Whilst these are extremely useful, they can cause problems when printing drawings from PDF’s.

All Wipeouts have therefore been placed on specific layers containing Wipeout as a suffix to the layer name so they can turned off if not required.
