The CTB files MFL-FullSize.CTB and MFL-Reduction.CTB are provided with SURVEYflow and your AutoCAD should be configured to read them as described in the Plot Style (CTB) Files section of this document.



MFL-FullSize.CTB:  Provides the correct lineweights for full size prints at 1:1 such as printing A0 drawing on A0 sheet, A1 drawing on A1 sheet, A2 drawing on A2 sheet, A3 drawing on A3 sheet.



MFL-Reduction.CTB:  Provides the same settings as MFL-FullSize.CTB except for reduced lineweight thicknesses. This is to be used for reduction type prints such as printing A0, A1, A2 drawings on an A3 sheet.



Both CTB files have all colour numbers 1 to 9 set to print in black, and all others will print in their assigned colour.

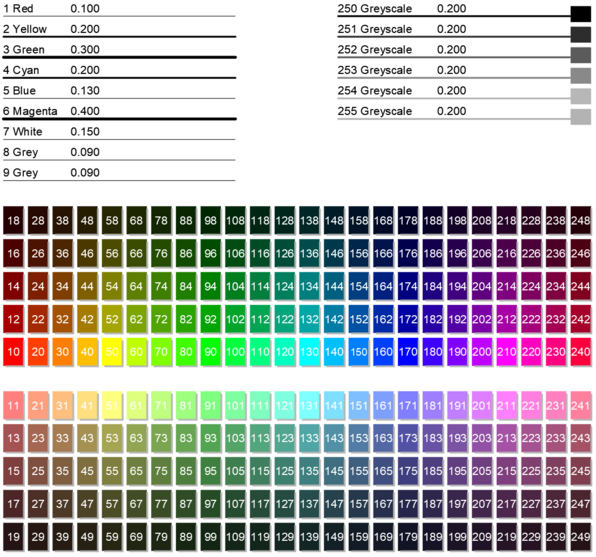

Below is the pen and colour settings for MFL-FullSize.CTB.
