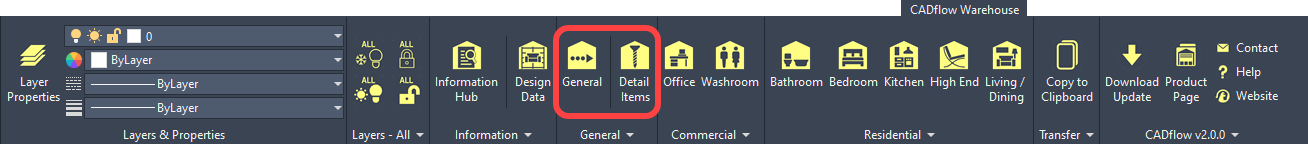

General Ribbon Panel

The General Warehouse contains a huge variety of content, including doors, windows, stairs, structural items, planting, people and more.

Detail Items has many detail components ready to be inserted into drawings - screws, bolts, steels, timber, decking profiles etc. are provided.

Simply copy / paste required data into your drawing.



Many of the elevation furniture and fitting blocks contain Wipeouts.

Whilst these are extremely useful, they can cause problems when printing drawings from PDF’s.

All Wipeouts have therefore been placed on specific layers containing Wipeout as a suffix to the layer name so they can turned off if not required.
