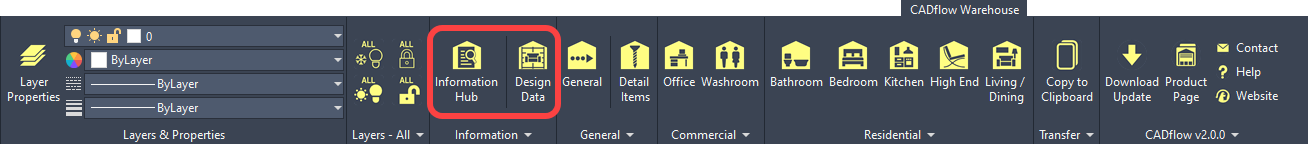

Information Ribbon Panel

Technical Reference contains direct access to the Building Regulations and other standard documentation, as well as product data and CAD related information.

The Design Data Warehouse contains the schedule of furniture requirements as stated in Building Regulations, Part M Volume 1: Dwellings Appendix D and the Metric Handbook.

Each furniture item has been integrated into the schedule, so the required data is instantly available.

Also, these elements contain an ‘A’ symbol that indicates the item is to the approved schedule size. The symbol resides on layer Defpoints so it will not print.

Simply copy / paste required data into your drawing.



Many of the elevation furniture and fitting blocks contain Wipeouts.

Whilst these are extremely useful, they can cause problems when printing drawings from PDF’s.

All Wipeouts have therefore been placed on specific layers containing Wipeout as a suffix to the layer name so they can turned off if not required.
