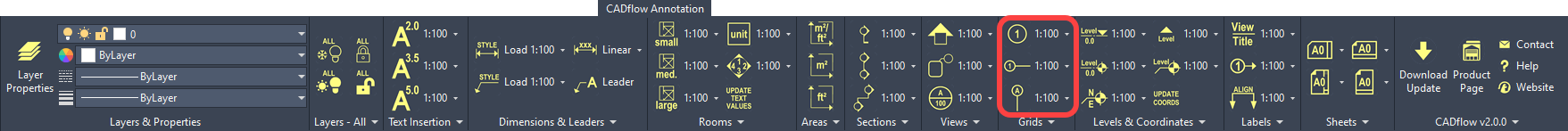

Hover the mouse pointer over the ribbon button for additional information on the command.



Three types of grid type blocks have been provided Grid Bubble, Grid Horizontal and Grid Vertical.



Select the required block type and scale, then click the position of the block within the drawing.



Double click the attributes provided to add the view reference and sheet number.



The Grid Bubble block is a grid bubble only with attributed text.



The Grid Horizontal and Grid Vertical blocks contain the grid line and a bubble at each end set with visibility states that can be manipulated using the blue grip.



Please note, only the values in the left bubble for the Grid Horizontal and the upper bubble for the Grid Vertical require filling out – once these have been added either click the Update Text Values button or perform a REGEN to update the opposite sides automatically.



The text font, size and layers will all be set automatically to the MonkeyFlow standard.



Scales from 1:1 to 1:500 have been provided, the default option for each command on the ribbon is 1:100.
