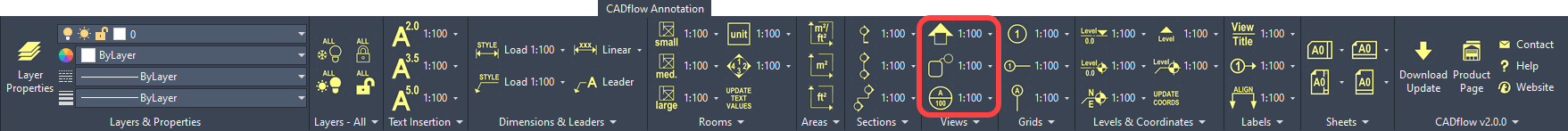

Hover the mouse pointer over the ribbon button for additional information on the command.



Three types of view blocks have been provided Elevation, Callout and Reference Bubble.



Select the required block type and scale, then click the position of the block within the drawing



Double click the attributes provided to add the view reference and sheet number.



Use the blue grips to manipulate the Elevation and Callout blocks to the required configuration.



The text font, size and layers will all be set automatically to the MonkeyFlow standard.



Scales from 1:1 to 1:2500 have been provided, the default option for each command on the ribbon is 1:100.
