Troubleshooting FAQ

The following sections provide answers to frequently asked questions about problems that you might encounter.

The SURVEYflow ribbon doesn't load during installation, how can I load the menus?

First check the status of the CUIX menu file.

From the AutoCAD command line type in CUI + enter to open the Customize User Interface dialogue.

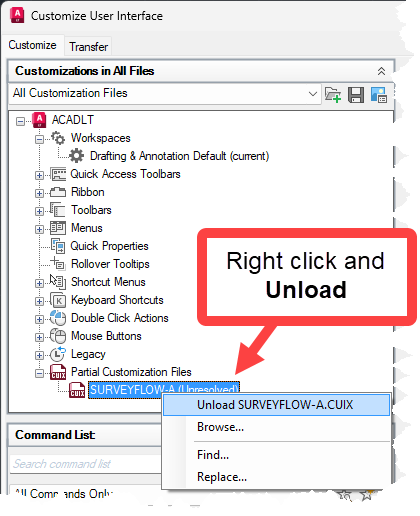

Open the Partial Customization Files area - if the SURVEYflow menu is listed (it may show unresolved), right click on it and select Unload SURVEYflow-A.CUIX.

The menu will be removed, then follow the instructions below to reload the SURVEYflow menu.

Option 1

1. Open Windows Explorer and navigate to the relevant folder:

For Autodesk® AutoCAD® / Autodesk® AutoCAD LT® - C:\Program Files\MonkeyFlow\SURVEYflow\_SETUP
For Bricsys® BricsCAD® - C:\Program Files\MonkeyFlow\SURVEYflow\_SETUP

2. Open AutoCAD / BricsCAD and start a new drawing.

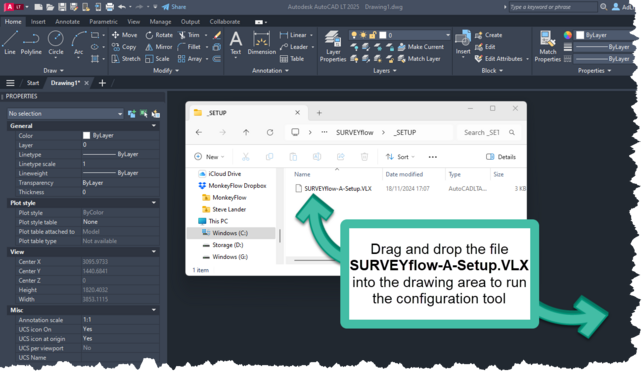

3. Drag and drop the file SURVEYflow-A-SETUP.vlx into the drawing area to run the configuration tool as shown.
For BricsCAD the file is SURVEYflow-B-SETUP.DES.

Click Always Load should a dialogue appear with the options below:

If successful the following message is displayed on the command line.

7. The configuration tool will do the following:

Loads the SURVEYflow ribbon menu
Adds the search path C:\Program Files\MonkeyFlow\SURVEYflow
Adds the trusted path C:\Program Files\MonkeyFlow\SURVEYflow
Copies the MonkeyFlow standard CTB files from C:\Program Files\MonkeyFlow\SURVEYflow\CTB to the Plot Styles AutoCAD location path - see Plot Style (CTB) Files.
Copies the MonkeyFlow standard DWT files from C:\Program Files\MonkeyFlow\SURVEYflow\DWT to the Templates AutoCAD location path - see Title Sheets (DWT) Files.

Note - if using BricsCAD, the installation folder is C:\Program Files\MonkeyFlow\SURVEYflow

8. Close and restart AutoCAD to save the settings.

Option 2

1. Open AutoCAD / BricsCAD.

2. Type in Options at the command line.

AutoCAD users only to proceed with step No.3 - skip to step No.9 if using BricsCAD

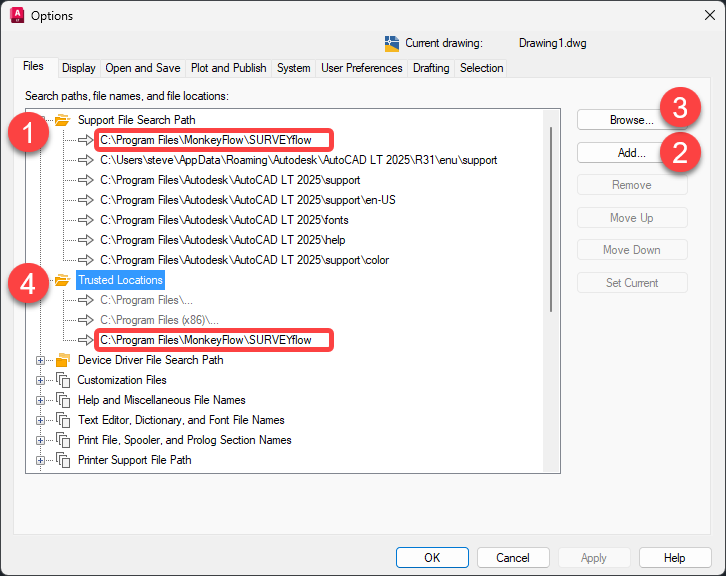

3. From the Files tab click on the + symbol next to Support File Search Path (no.1 below), select Add (no.2) then Browse (no.3), and navigate to:

C:\Program Files\MonkeyFlow\SURVEYflow

Click Open to add the search path. Once added to the list select the path and use the Move Up button to move the path to the top of the list as shown at no.1 below.

4. Next, from the Files tab click on the + symbol next to Trusted Paths (no.4), select Add (no.2) then Browse (no.3), and repeat adding the same path as image above.

5. Click OK to close the Options dialogue.

6. Type MENULOAD on the AutoCAD command line to open the Load / Unload Customization dialogue box.

	WARNING – ensure you type MENULOAD in full and NOT MENU as this could inadvertently unload your main AutoCAD menu.

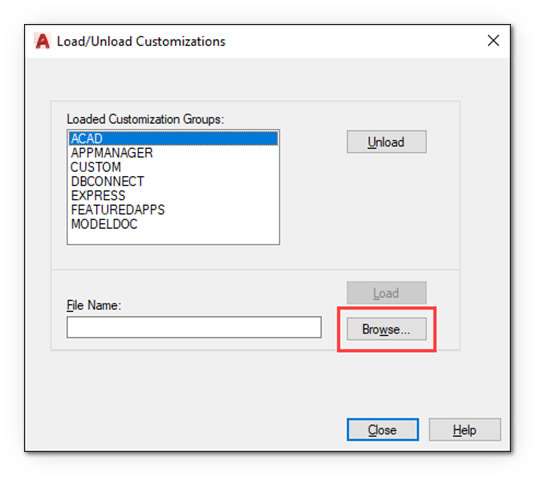

Click Browse and navigate to:

C:\Program Files\MonkeyFlow\CADflow\SURVEYflow-A.CUIX

Select the CUIX file, click Open and then Load on the Load/Unload Customizations dialogue.

Once SURVEYflow is displayed in the Loaded Customizations Groups list, click Close to return to the AutoCAD screen.

	WARNING – click very carefully in the Load / Unload Customization dialogue as it is very easy to inadvertently unload all the AutoCAD menus.

BricsCAD users only to proceed with step No.9 - skip to step No.14 if using AutoCAD

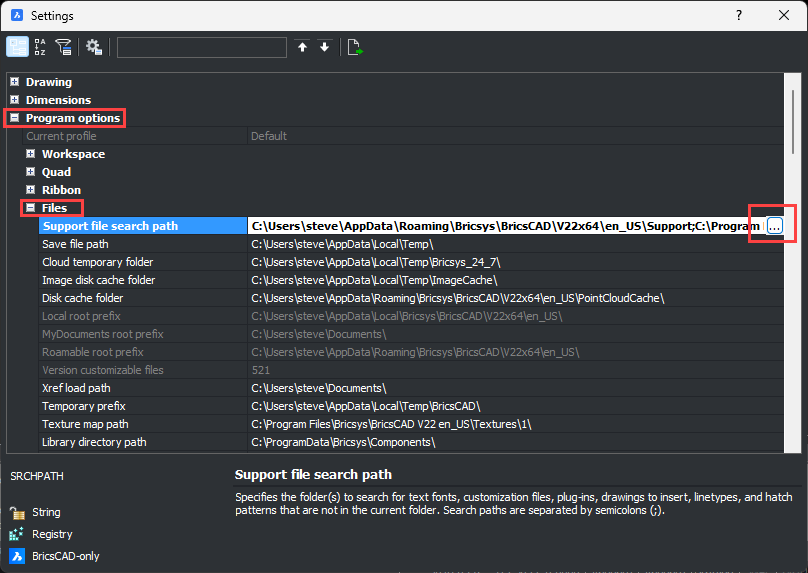

9. From the Settings dialogue open Program options> Files as shown and click the … button at the end of the Support File Search Path line to open the Path List dialogue.

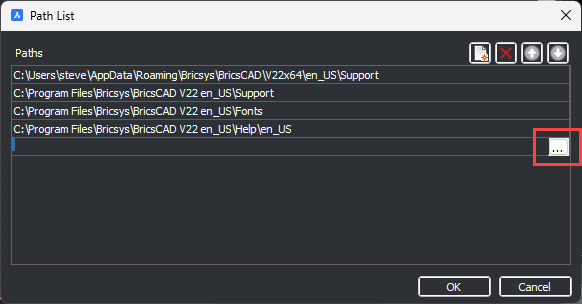

From the Path List dialogue, click the … button at the end of the bottom blank line as shown:

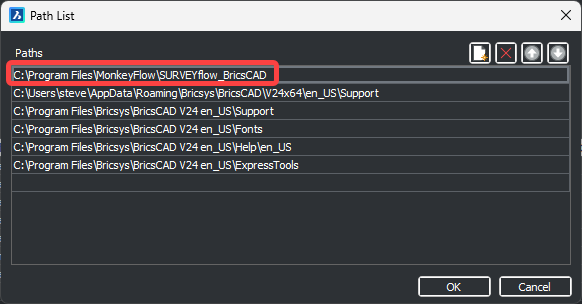

Then navigate to C:\Program Files\MonkeyFlow\SURVEYflow_BricsCAD

Click Select Folder to add the search path. Once added to the list click on the path and use the Up arrow button to move the path to the top as the shown below.

10. Click OK and close the Options dialogue.

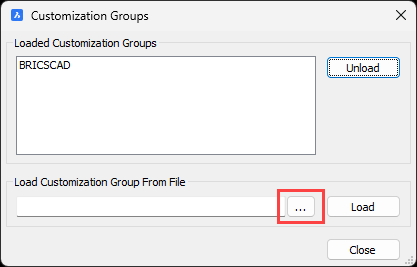

11. Type MENULOAD on the BricsCAD command line to open the Customization Groups dialogue box.

12. Click … and navigate to C:\Program Files\MonkeyFlow\SURVEYflow_BricsCAD

Select SURVEYflow.CUI click Open to return to the Customization Groups dialogue.

13. From the Customization Groups dialogue click Load then the Close button to return to the BricsCAD screen.

14. The SURVEYflow ribbon tabs should now be displayed. Should you also require the SURVEYflow pull-down menus to display type in MENUBAR on the AutoCAD command line and set it to 1.

15. Close AutoCAD / BricsCAD and restart to save the settings.

16. To complete the SURVEYflow configuration the DWT (title sheets) also need to be set up to suit your company requirements.

Please refer to the pages Title Sheets (DWT) Files and Plot Style (CTB) Files.

If you have not found the answer to your question, please email us at: troop@monkeyflow.co.uk.
